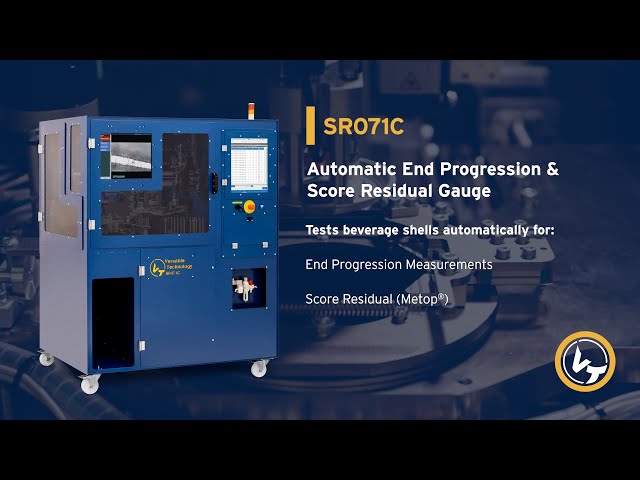

SR071C

Automatic End Progression & Score Residual Gauge

VT x METOP®. Making progress every step of the way.

Using high precision lasers and our inhouse designed and built X-Y & rotate table, we can measure end progression on any beverage end size with no changeparts needed. Working with Metop® from Sweden, we have developed the world’s first automatic system to measure score integrity and anti-missile.

TESTS

End Progression:
Bubble:

Height

Thickness

Coin

Button:

Height

Thickness

Coin

Finished End:
Rivet Diameter

Rivet Residual

Finger Well

Bead Height

Cent Bead

Panel Form Station

Rivet Restrike

Inner Bead Residual

Outer Bead Residual

Vent Bead Residual

Anti-Rotation Dimple Height

Metop® Score Residual:

Score Residual

Anti-missile

FEATURES

Powered by our Next Generation V3 Platform, running on a rugged and reliable industrial embedded PC

19″ LCD Colour Capacitive Touch Screen and Cherry keyboard (tray)

Operator-free measurement

High-precision Micro-Epsilon® lasers

Multisize: 200-209 ends – no changeparts required. 209 available on application

Detailed graphing of bubble and button profile – tool misalignment

Calibration ceramic block – self-referencing 0.5mm

Guaranteed GR&R on end progression

Colour options: Hammertone Blue or Appliance White Powder Coat
