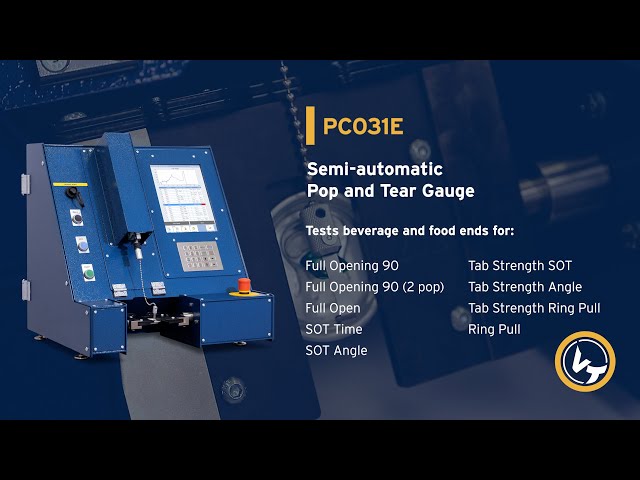

PC031E

Pop and Tear Gauge

TESTS

The industry standard in
Pop & Tear testing

Measures:
Pop, Tear & Tab strength.
Records Force Vs time or Force Vs angle

Capacities:

  • Stay on Tabs
  • Ring Pull Ends
  • Full Opening Ends
  • Maximum Diameter: 99

Test Modes:

  • Full Opening 90
  • Full Opening 90 – 2 Pop
  • Full Open
  • SOT Time
  • SOT Angle
  • Tab Strength SOT
  • Tab Strength Angle
  • Tab Strength Ring Pull
  • Ring Pull

FEATURES

TFT Color Graphics display

Real-time on-screen Force Vs Time or Angle waveform plotting

USB Service port

Industrial Stainless Steel Keypad interface

RS232 & direct Ethernet data output capability

Backup settings and export

waveform data to USB Stick

Integral calibration stand

Custom test profiles for different end characteristics

Software adjustable sample rates and detection methods



INCLUDES

1 Standard Change part of your choice

Operation Manual

Power Lead (to suit region)

RS232 Cable (25M-9F pin)

OPTIONAL EXTRAS

QISView Software
Graphical analysis of recorded test modes.
Allows saving of results table and corresponding graphs.

Requirements:
OS supported: XP and 8

Includes:
Operation manual
Software CD

Note: Not required to operate gauge

Additional Standard Change part
Allows testing of different end sizes.

Available for:

  • Beverage Stay on tab & Ring Pull Ends
  • Food Full Panel Ends
  • Foil Peel Ends

Note: 1 Standard change part supplied with gauge

Calibration Weight Set
Allows periodic calibration of force measurement system.

NATA certified (Internationally traceable)

Consists of:

  • 1 x 10N Slotted Mass
  • 3 x 20N Slotted Mass
  • 1 x Hanger

PC031E Basic Spare Parts Kit
Kit includes basic wear parts:

Consists of:

  • 1 x 2455: DPDT 8A 24V DC Relay
  • 1 x 7987: SPDT 16A 24V DC Relay
  • 1 x 14484: Switch N/O Contact Block
  • 1 x 14485: N/C Switch Contact Block
  • 2 x 14480: Switch Caps, Green
  • 1 x 14479 & 14483: Switch Assembly
  • 1 x 5192: Test Chain





MAINTENANCE GUIDES

ELECTRICAL

MECHANICAL
