PRODUCT RANGE

Beverage Cans

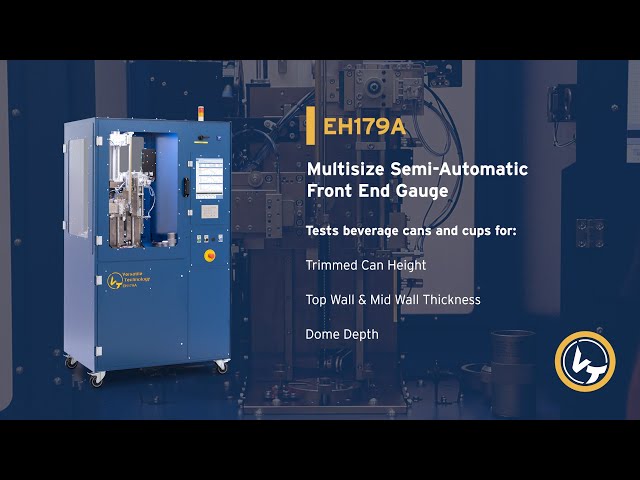

EH179A

Multisize Semi-automatic Front End Gauge

TESTS

The perfect balance between manual and automatic. Discover the potential.

Standard beverage can diameters 202, 204, 206, 211 and 300 any height – 200ml to 750ml (7.05oz to 25oz) without changeover.

Mid and top wall thickness.

Dome depth.

Trimmed can height. (Resolution 0.00001)

Cup option tests all standard beverage can cups without changeover between sizes or cans.

FEATURES

V2 microprocessor controller. (No PC or MS Windows)

15” colour LCD touch screen interface.

Measures dry and lubricated cans.

Programmable wall thickness location.

Real time graphing of top wall, mid wall and vertical scan.

Single point, multipoint and scanned wall thickness. (Note: Lubricated cans only.)

Ethernet data transfer.

USB port for program updates, settings backup and off line data storage.

Standard colour: blue hammertone powder coat.

Note: Gauge is semi-automatic and requires operator to load samples.

INCLUDES

Operation manual including spare parts and safety test procedures.

Power lead. (to suit region)

Gauge Safety Test Report. Record of safety feature testing.

Calibration certificate. Traceable to NATA/NIST.

OPTIONAL EXTRAS

Cup measurement option.

vTools software.

EH179 basic spare parts kit:

  • 1 x 8A DPDT 24V dc relay
  • 1 x switch N/O contact block
  • 1 x replacement boots for 10mm probes
  • 1 x replacement boots for 2mm probes
  • 2 x 3mm ball tip, M2.5 carbide tip
  • 2 x switch caps, green
  • 2 x switch caps, blue
  • 2 x switch caps, black
  • 1 x steady weight grommet
