Beverage Cans

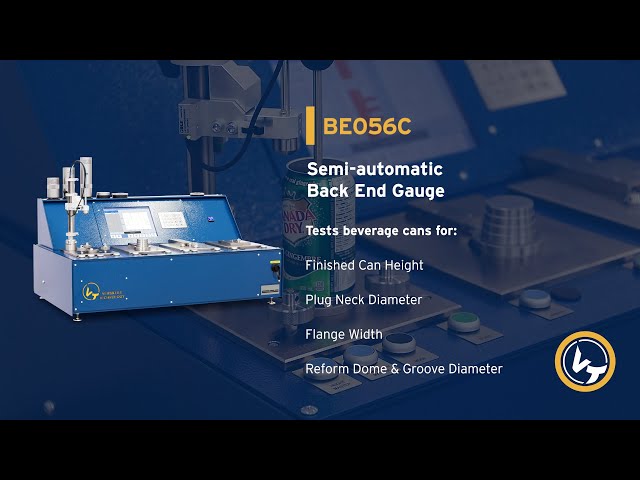

BE056C

Back End Gauge

TESTS

The Perfect Gauging Partner

Measures standard finished beverage can dimensions.

Tests

  • Plug Neck Diameter. Split Sector Method.
  • Finished Can Height. Multipoint, single point.
  • Flange Width. Multipoint, single point.
  • Optional Reform Dome Scanner station.
  • Reform Dome Diameter.
  • Reform Groove Diameter.
  • Reform Groove and Diameter height.

FEATURES

Available for 202, 204, 207.5, 211, 300 Body Diameters.

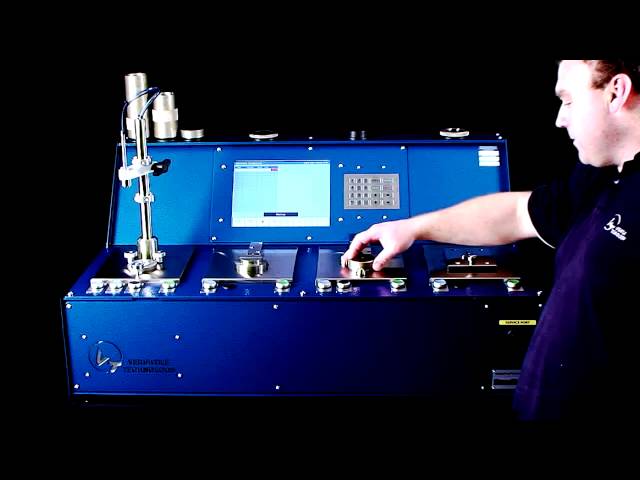

4 Station Case Includes:

  • Finished Can Height
  • Plug Diameter
  • Flange Width
  • Blanking Plate or Option

Capacities:
Aluminium or Steel cans
(Please confirm can sizes prior to ordering)

Guaranteed R&R to agreed manufacturing tolerances

Single-point, Multiple-point and TIR modes

Quick adjustment for different can heights

Automatic can alignment on FCH/DD, FW & PD

On-screen data tabulation

Color coded out of specification

Create test profile library’s for individual parts

Alphanumerical Industrial Stainless Steel keypad

Integral RS232 & Ethernet data ports

USB service port allows easy program updates, back-up/restore of settings

INCLUDES

Operation Manual

Power Lead (to suit region)

RS232 Cable (25M-9F pin)

OPTIONAL EXTRAS

Reformed Dome Depth Option
Fitted within Finished Can Height station

Reformed Dome Scanner Option

Measures Reform Dome Diameter and Reform Groove Diameter

Available within fourth station

2nd Can Height Gauge Option
Can Height Gauge 25–50cl capacity

Recommended where 2 can sizes are run at the same time.

Installed as fourth station.

FFCH Height Master & Can Steady
One required per neck size.

  • Hardened, Ground 440C S/Steel
  • Laser Etched specifications
  • NATA certified (Internationally
  • traceable)

Plug Neck Diameter Setting Master
One required per neck size.

  • Hardened, Ground 440C S/Steel
  • Laser Etched specifications
  • NATA certified (Internationally
  • traceable)

Flange Width Setting Master
One required per flange size.

Hardened, Ground 440C S/Steel
Laser Etched specifications
NATA certified (Internationally
traceable)

Reformed Dome Depth Setting Master

-5 Hardened, Ground 440C S/Steel
-6 Laser Etched specifications
-7 NATA certified (Internationally traceable)

One required per Dome dimension.

Reformed Dome Diameter Setting Master
One required per dome diameter dimension.

  • Hardened, Ground 440C S/Steel
  • Laser Etched specifications
  • NATA certified (Internationally
  • traceable)

BE056B Basic Spare Parts Kit
Kit includes basic wear parts:

Consists of:

  • 1 x 7987: 16A SPDT 24Vdc Relay
  • 1 x 2455: 8A DPDT 24Vdc Relay
  • 1 x 14484: Switch N/O Contact Block
  • 2 x 1072: Replacement Boots for 10mm Probes
  • 2 x 1073: Replacement Boots for 2mm Probes
  • 2 x 14480: Switch Caps, Green
  • 2 x 14481: Switch Caps, Blue
  • 2 x 14482: Switch Caps, Black
