AF059C

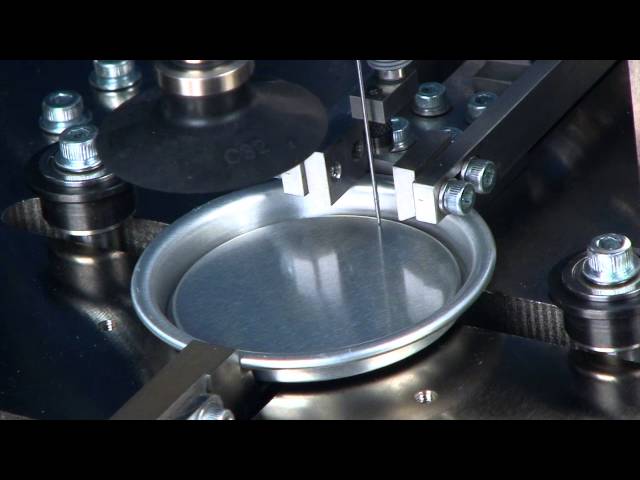

Automatic Shell Gauge

TESTS

More flexible, more capable and now with automatic grain alignment

Tests beverage shell sizes from 200 through 206 diameters (209 on application) with no change parts required. Includes optical grain alignment and automatic sorting of passed and failed ends.

Tests:

  • Curl Height
  • Countersink
  • Unit Height
  • Panel Depth
  • Curl Opening
  • External Curl Diameter
  • Internal Curl Diameter

FEATURES

V2 Microprocessor Controller. (No PC or MS Windows)

15” Colour LCD Touch Screen interface.

Automatic Tab Locater system allows testing of tabbed Full Panel Ends.

Automatic Grain Alignment.

5 Load Bins – adjustable size.

Ethernet Data Transfer.

USB port for program updates, settings backup and off line data storage.

INCLUDES

Operation Manual including spare parts and safety test procedures.

5 Adjustable End Bins.

Combined Curl Opening/Curl Diameter Setting Master. Note: Master supplied will be close to median diameter of ends to be tested. We recommend the maximum difference from Master to End diameter is 10mm.

Power Lead (to suit region)

Gauge Safety Test Report. Record of safety feature testing.

Calibration Certificate. Traceable to NATA/NIST

OPTIONAL EXTRAS

Combination Curl Diameter/Opening Master

Hardened, precision ground 440C stainless steel.
Supplied with NATA/NIST certificate.
NOTE: Versatile recommend that Curl Diameter Masters are purchased to ensure the maximum difference from Master to End diameter is 10mm

Adjustable End Bin.
Set of 5 bins.

Spares Kit
Kit includes-

  • -7 Probe Boot Kit
  • -8 Relay Kit
  • -9 Vacuum pad kit.
  • -10 Fuse kit.

MAINTENANCE GUIDES

ELECTRICAL

MECHANICAL
