TK065H

Automatic Openability Gauge

TESTS

The World Standard just got better, with our internationally patented tab tracer!

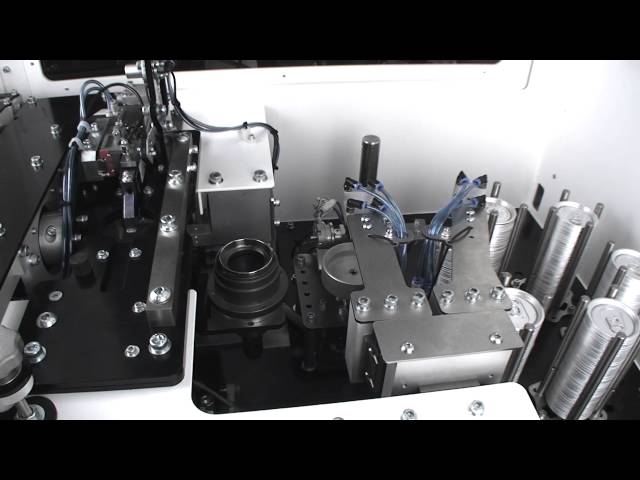

The Versatile Technology TK065 Openability Gauge is the market leading pressurised automatic pop and tear gauge and is used by all the major end makers worldwide.

It is unparalleled when it comes to available test modes, features and end capacity.

Test Modes

  • Pop and Tear No Pressure
  • Pop and Tear Single Pressure
  • Pop and Tear Dual Pressure (Pasteurisation simulation)
  • Missile/Vent
  • Tab Tuck under
  • Fast Open/Thermal Checks
  • Rivet Tightness

FEATURES

Sizes: 200 – 206 (209 on request)

Tab Tracer for automatic tab alignment and rivet tightness under no force.

V2 Microprocessor Controller with 15” Colour LCD Touch Screen interface. (No PC or MS Windows)

Real time graphing of force, angle, and pressure.

Non-contact camera-based automatic tab alignment.

Mechanical tab rotation for tab strength to 90, 180 or 270 degrees for tab strength testing

End Capacity 480 ends

Camera checks for missile and tuck under.

Auto saving of previous 50 test sequences

Output Data caching – when network connection is lost the output data is saved locally until  the network connection is re-established.

Ethernet Data Transfer

USB port for program updates, settings backup and off line data storage.

Standard Colour: Blue Hammertone Powder Coat



INCLUDES

Operation Manual including spare parts and safety test procedures.

Power Lead (to suit region)

Gauge Safety Test Report. Record of safety feature testing.

Calibration Certificate. Traceable to NATA/NIST

OPTIONAL EXTRAS

Additional Change-part

Sizes from 200,202,204,206 (209 on application)

Note that one size is supplied with the gauge.

Calibration Weight Set

allows periodic calibration of force measurement system

NATA certified (Internationally traceable)

consists of:

  • 1 x 10N slotted mass
  • 2 x 20N slotted mass
  • 1 x openability hanger

TK065G Service Pack

Includes all parts for standard service

Consists of:

  • O Ring Kit
  • Vacuum Pad Kit
  • 1 x 7472: End Gripper (pair)
  • 2 x 7735: Change Part Spring (3/pkt)

Pressure Calibration Gauge

Allows periodic calibration of pressure measurement system.

Model: DRUCK DPI 705

  • Complete with carry case, tubing and calibration connector
  • 20Bar Full Scale
  • Basic accuracy ±0.2% of FS
  • NATA Certified. (Internationally traceable)

Adjustable End Bin

Extra set of 4 bins

Spares Kit
Kit includes-

  • Relay kit
  • Vacuum pad kit.
  • Fuse kit.
