PRODUCT RANGE

Beverage Ends

ME163A

Automatic End Enamel Rater (mA Gauge)

TESTS

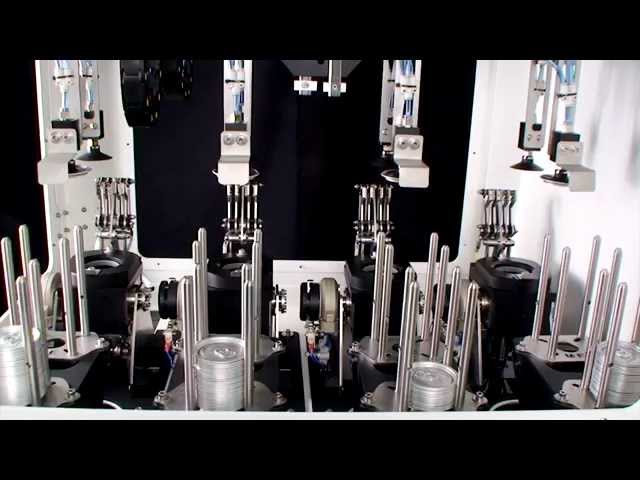

The world’s first multi head automatic shell exposure gauge

Tests SOT Stay-On-Tab Beverage Ends – 200, 202, 206 sizes using appropriate change-part. (209 version available to special order).

Tests:
Metal Exposure mA

FEATURES

V2 Microprocessor Controller. (No PC or MS Windows)

15” Colour LCD Touch Screen interface.

4 End Bins – 60 ends per bin minimum.

Automatic electrolytic solution metering from large reservoir

Automatic scoring and continuity checks

Utilizes industry proven WACO instrumentation

Integrated 20L electrolyte tank

Fast <15 second cycle time (based on 4 second immersion)

Pass/Fail eject chute

Ethernet Data Transfer

USB port for program updates, settings backup and off line data storage.

INCLUDES

1 Change part of your choice

4 End Bins (adjustable to any size)

Operation Manual including spare parts and safety test procedures.

Power Lead (to suit region)

Calibration Certificate. Traceable to NATA/NIST

OPTIONAL EXTRAS

Additional Change-part and Bin set
Size choice: 200, 202, 204, 206, 209
1x test cup change-part and 4x Bins

Note that 1 size is supplied with the gauge.

Calibration Kit
Allows periodic calibration of instrumentation

  • 6.3, 25, 100, 250 milliamp resistor set
  • Supplied with Internationally traceable certification

Basic Spare Parts Kit
Kit includes basic wear parts.

Consists of:

  • 2 x Change part Seals
  • 8 x Vacuum Pad, 8 mm diameter, silicon
  • 2 x Eject pickup pad
  • 2 x 2455: 8A DPDT 24Vdc Relay
  • 1 x Continuity Teeth Set
  • 2 x Continuity Wire Set

MAINTENANCE GUIDES

ELECTRICAL

MECHANICAL
