PRODUCT RANGE

Beverage Ends

MW146A

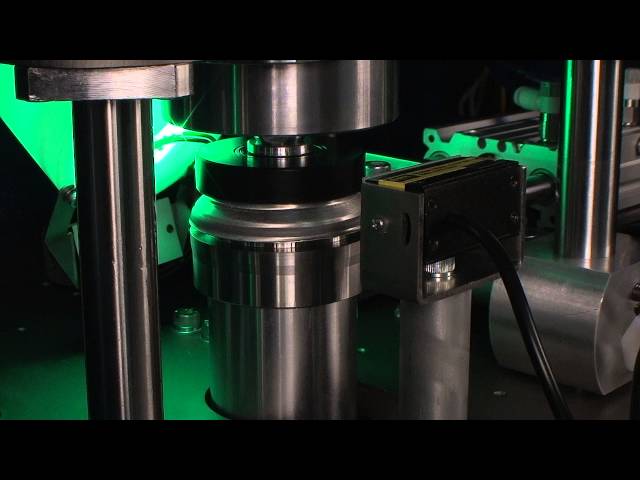

Automatic Compound Placement Gauge

TESTS

automatic curl unrolling,
precision vision camera system with 360º scanning

Featuring Multi Point Testing mode and our Automatic Continuous Test mode which will provide you with maximum, minimum and average readings.

Tests:

  • Compound Width
  • Cut edge to Compound
  • Shoulder to compound
  • Feature detection e.g. skip, slider, voids, gun start etc.
  • Integrates with DJ111 Auto Compound Weight Gauge

FEATURES

V2 Microprocessor Controller with 15” Colour LCD Touch Screen interface. (No PC or MS Windows)

4 End Bins – 60 ends per bin minimum

Resolution 0.01mm

Real time graphing of compound and end edges

Unrolling of curl to minimize compound smearing

Ethernet Data Transfer

USB port for program updates, settings backup and off line data storage

Standard Colour: Blue Hammertone Powder Coat

INCLUDES

4 End Bins (adjustable to any size)

Operation Manual including spare parts and safety test procedures

Power Lead (to suit region)

Calibration Certificate. Traceable to NATA/NIST

Setting Masters – NATA certified

OPTIONAL EXTRAS

Additional Change-part

Sizes from 200, 202, 204, 206 (209 on application)

Note: Gauge includes one changepart of your choice.

Adjustable End Bin

Extra set of 4 bins

Spares Kit
Kit includes-

  • 1x 14485 N/C Contact Block
  • 1x 2455 8A DPDT 24V Relay
  • 1x 1139 Vac Pad 32mm
