PRODUCT RANGE

Beverage Ends

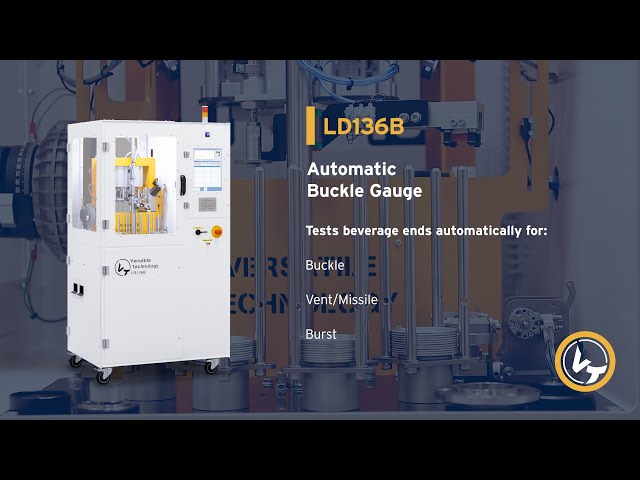

LD136B

Automatic Buckle Gauge

TESTS

The world’s first dual size automatic beverage end buckle gauge

Tests both missile/vent and buckle strength with real time graphing of pressure over time. Now with dual vision camera vent area detection

Dual size automatic buckle testing of beverage ends.

Tests

  • Buckle Strength
  • Vent/Missile Test

Optional

Burst (with countersink support ring)

FEATURES

V2 Microprocessor Controller. (No PC or MS Windows)

15” Colour LCD Touch Screen interface.

4 adjustable loading bins.

Dual size capable. (If burst option is not fitted.)

Automatic tab alignment for Vent/Missile Testing.

Real time graphing of pressure/time.

Industry standard rubber seal changeparts.

Ethernet Data Transfer

USB port for program updates, settings backup and off line data storage.

Standard Colour: Blue Hammertone Powder Coat

INCLUDES

Operation Manual including spare parts and safety test procedures.

Power Lead (to suit region)

Gauge Safety Test Report. Record of safety feature testing.

Calibration Certificate. Traceable to NATA/NIST

OPTIONAL EXTRAS

Burst Station Option.

Adds the burst station option to the gauge, which allows for normal and supported countersink burst testing of ends.

Burst Countersink Support Ring.

Supports countersink to prevent buckling during aperture strength testing. One per end diameter size is required.

Note. Versatile will require samples of the ends to enable manufacture of the ring.

Changepart.

Note: Gauge includes one changepart of your choice.

Available in 200, 202 and 206. Special order for additional sizes

Pressure Calibration Gauge

Allows periodic calibration of pressure measurement system.

Model: DRUCK DPI 705

  • Complete with carry case, tubing and calibration connector
  • 20Bar Full Scale
  • Basic accuracy ±0.2% of FS
  • NATA Certified. (Internationally traceable)

Spares Kit
Kit includes-

  • -3 Seal Kit. To suit changeparts.
  • -4 Vacuum pad kit.
  • -5 Fuse kit.

MAINTENANCE GUIDES

ELECTRICAL

MECHANICAL
