Beverage Cans

MP44A

Automatic Back End Gauge

TESTS

The World’s only automatic continuous scanning back end gauge! It’s designed to be tested!

Tests standard beverage can diameters 202, 204, 206, 211 and 300 cans without changeover.

Tests standard beverage necks 200, 202 and 206 without changeover.

Tests standard beverage can heights from 200ml through 750ml (7.05oz to 25oz) without changeover.

  • Factory Finished Can Height
  • Plug Neck Diameter
  • Flange Width
  • Reform Dome Parameters (when fitted)
  • Reform Dome Depth
  • Reform Dome Diameter
  • Reform Dome Diameter Height
  • Reform Groove Diameter
  • Reform Groove Height

FEATURES

Scanning Reform Diameter and Groove Diameter option.

Flange Angle & J-Point Measurements

200, 202 and 206 split sectors fitted standard.

Manual / Automatic Can loading.

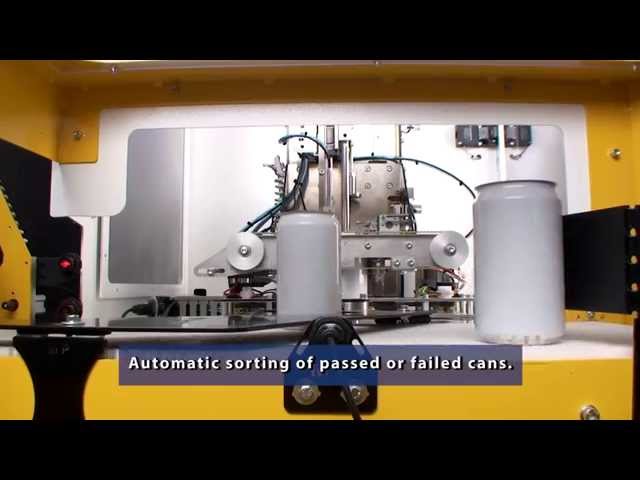

Accept / reject output lanes.

V2 Microprocessor Controller. No PC and no Microsoft Windows.

15” Colour LCD touch screen interface.

4 lane conveyor.

Ethernet Data Transfer.

USB port for program updates, settings backup and off line data storage.

Standard Color:  Blue Hammer tone Powder Coat.

INCLUDES

Operation manual including spare parts and safety test procedures.

Power lead to suit region.

Gauge Safety Test Report and record of safety feature testing.

Calibration ceertificate traceable to NATA/NIST.

OPTIONAL EXTRAS

Reform Dome Depth & Diameter Scanner Option.

Measures:

  • Reform Dome Depth
  • Reform Dome Diameter
  • Reform Dome Diameter Height
  • Reform Groove Diameter
  • Reform Groove Height

Includes setting master.

Flange Angle and Seaming Clearance (J-point)

MP44A Basic Spare Parts Kit.

Kit includes basic wear parts.

Setting Master. Combined Height/Plug Neck and Flange Width Master.

One set required for each neck diameter.
440C Stainless Steel, hardened and precision ground.
Supplied with NATA/NIST certification.
Note: Versatile recommend that the setting master be within 25 mm height of the cans to be measured.
